Specifications
bioTank technical specifications.
The treatment unit has integrated PVC lids and separate blower housings to ensure full water tightness. Risers can be supplied or sourced locally.
Parameter
Unit
Value
- Maximum number of full-time residents
- p/day
- 8
- Average flow
- m³/day
- 1.6
- BOD load
- kg/day
- 0.48
- Overall length
- m
- 3.4
- Width
- m
- 1.2
- Height
- m
- 1.45
- Inlet level to base
- m
- 1.2
- Outlet level to base
- m
- 1.1
- De-sludge period
- month
- 12
- Air blower motor rating
- watts
- 60
- Weight
- kg
- 3,200
Installation
Lifted into place. Commissioned on site.

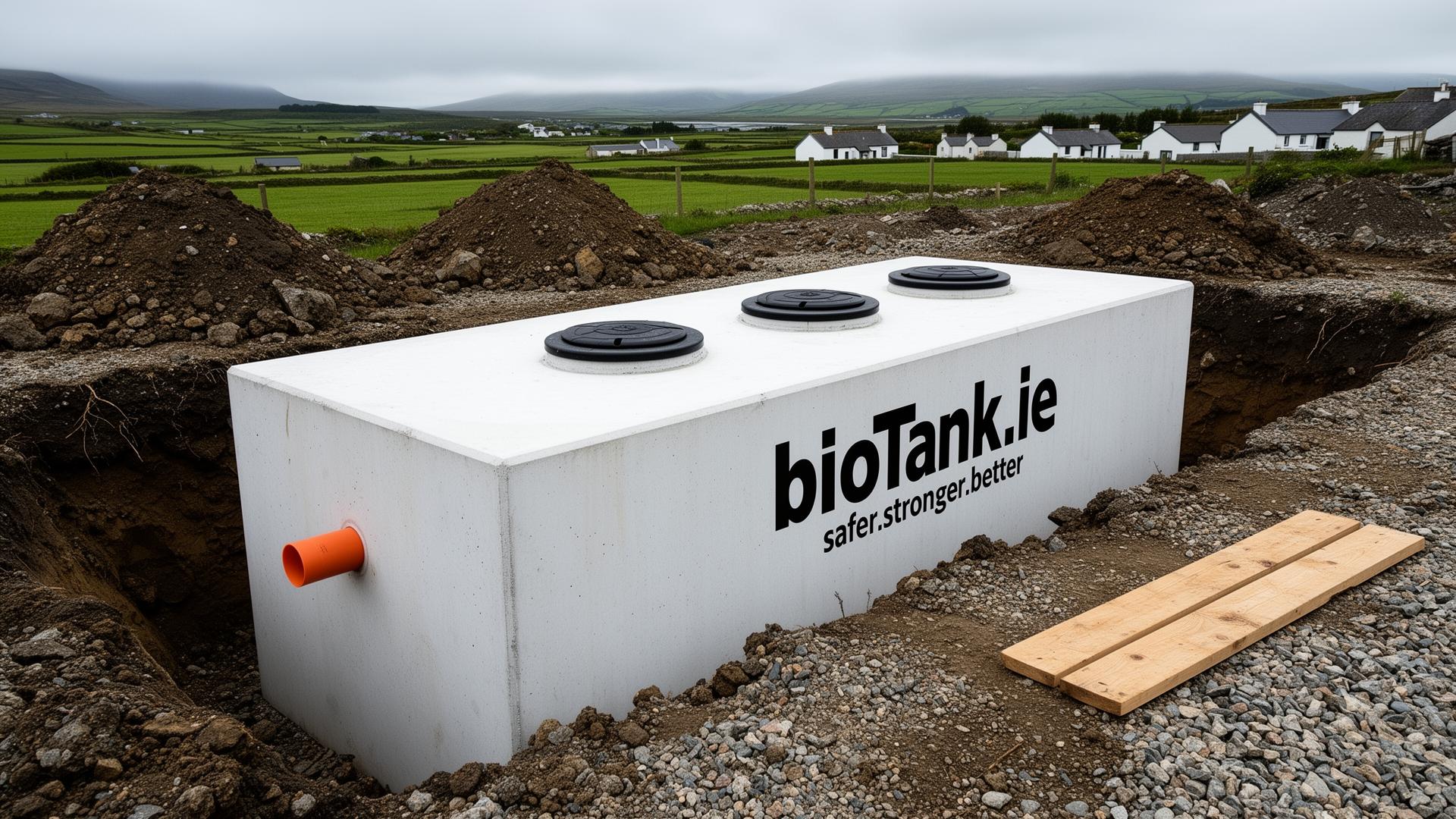

As a single concrete structure, installation is fast and economical. The tank is craned into the excavation, connected to standard 110mm inlet and outlet pipes, and backfilled to grade.
